Description

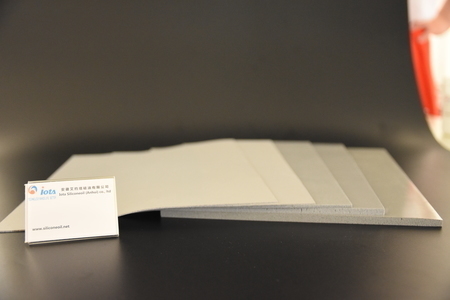

IOTA-BF-2000 Ultra Soft is a highly compressible silicone foam.The combination of low weight and softness makes this flame retardant foam ideal for transportation, industrial, and electronics applications where low closure force and dust sealing are critical. IOTA Silicones are available in various thicknesses and manufactured in roll form to allow fabricators to easily convert the material to the proper dimensions.
Features & Benefits
1. Ultra low softness allows designers to use less force to seal enclosures and still protect their device from theenvironment.
2. High compressibility allows material to conform to variable width gaps, thereby allowing more design flexibility.
3. Excellent memory and low stress relaxation reduces maintenance costs associated with gasket failures due to compression set and softening.
4. Resistance to ultraviolet light, ozone, extreme temperatures, and flame enables consistent performance in all environments.
Applications
1. Vibration isolation in electronic components and transportation vehicles
2. Low closure force gaskets within portable electronics such as laptops and LCD screens within aircraft and rail interiors
3. Fire retardant thermal insulation
Installation
Available with a pressure-sensitive adhesive on one or two sides to allow easy application to a variety of surfaces.
Technical index
PROPERTY |
TEST METHOD |
TYPICAL VALUE |
SPECIFICATION |
||
PHYSICAL |
|||||
Color |
Visual |
Black, Gray, Red |
--- |
||
Thickness,mm(inches) |
Internal |
3.18 - 12.70 (0.125 - 0.500)
|
--- |
||
Density, kg/m³ (lb./ft³) |
Internal |
175(11) |
160-240(9.98.7 - 14.98) |
||
Compression Force Deflection, kPa (psi) |
ASTM D1056 |
10(1.5) |
0-17(0- 2.5) |
||
Compression Set, % |
ASTM D1056 100°C (212°F) / 22 hrs / 50% |
6.9 |
< 12 |
||
Water Absorption, % |
Internal 2" below water surface / 24 hrs / change in weight |
1.4 |
--- |
||
FLAMMABILITY |
|||||
Flame Resistance |
UL 94 (File E83967) |
Meets |
V-0 ; HF-1 |
||
Flame Spread Index (Is) |
ASTM E162 |
Meets |
Flaming Mode < 35 |
||
Smoke Density (Ds) |
ASTM E662 |
Meets |
Flaming Mode, 1.5 min, < 100 Flaming Mode, 4.0 min, < 200 |
||
Burn Length |
FMVSS 302 |
Meets |
< 100 mm/min |
||
THERMAL |
|||||
Temperature Range, °C (°F) |
Internal |
-55 to +200 (-67 to +392) |
--- |
||
Thermal Conductivity, W/m °K |
ASTM D518 |
0.048 |
---
|
||
Low Temperature Flex |
ASTM D1056 -55°C (-67°F) / 5 hrs |
Pass |
--- |
||
Low Temperature Brittleness |
ASTM D746 -55°C (-67°F) / 3 min |
Pass |
---
|
